Electronic work disk

Electronic Work Disk for Electronic Components

An electronic work disk is a customized tray designed for the positioning, handling, storage, inspection, and transportation of electronic components during manufacturing and assembly processes. It can help organize individual components in dedicated cavities and reduce unnecessary movement during production, internal transfer, and packaging.

WELL CHSIEN specializes in customized vacuum formed products and provides electronic work disks for IC components, D-RAM, electronic parts, precision instruments, and other industrial applications.

Depending on the customer's requirements, electronic work disks can be manufactured using PET, PS, antistatic, or conductive materials. Tray dimensions, cavity size, cavity quantity, material thickness, layout, and other specifications can also be customized according to the actual component and production process.

For manufacturers requiring a dedicated electronic component handling solution, a custom electronic work disk provides greater flexibility than a general-purpose plastic tray.

What Is an Electronic Work Disk?

An electronic work disk is a formed plastic tray with cavities or positioning areas designed to accommodate electronic components and precision parts.

During manufacturing, electronic components may pass through multiple processes such as assembly, inspection, testing, temporary storage, internal transportation, and packaging. A properly designed work disk keeps components arranged in predetermined positions throughout these processes.

Depending on the industry, similar products may also be called:

Electronic working disk
Electronic component tray
ESD tray
Antistatic work disk
Conductive work disk
TRAY disk
Vacuum formed tray
Electronic parts tray

Although these terms may describe similar products, the correct tray material and structure should be selected according to the actual component, production process, and ESD requirements.

What Is an Electronic Work Disk Used For?

Electronic work disks can be used throughout different stages of electronic manufacturing.

Typical applications include:

IC components
D-RAM components
Semiconductor-related parts
Electronic components
Precision electronic parts
Electronic assembly
Production-line handling
Component inspection
Temporary component storage
Internal factory transportation
Precision instruments
Industrial electronic parts
Customized component packaging

Because electronic components vary significantly in dimensions and geometry, customized cavity designs can help keep individual parts properly positioned.

Electronic Work Disk Applications

Application	Function of Electronic Work Disk
IC Components	Component positioning and organized handling
D-RAM	Storage, handling and internal transportation
Electronic Parts	Individual cavity positioning
Precision Components	Helps reduce unnecessary movement and contact
Production Line	Organized component transfer between processes
Inspection	Components can be arranged for identification and checking
Temporary Storage	Keeps parts organized before the next production process
Transportation	Customized cavities help maintain component positioning
Semiconductor-Related Parts	Antistatic or conductive materials can be selected as required

The actual tray specification should always be determined according to the component and its handling requirements.

Electronic Work Disk Materials

Material selection is an important consideration when developing an electronic work disk.

PET and PS are commonly used options for electronic component trays. Antistatic or conductive material properties can also be selected according to the application.

Material Type	Typical Appearance	Surface Resistance*	Typical Use
Antistatic PET	Usually transparent	Approx. 10¹⁰–10¹² Ω	Electronic and precision components
Conductive PS	Usually black	Approx. 10⁴–10⁶ Ω	Electronic applications requiring conductive properties
Customized Material	Depends on specification	According to requirements	Special OEM/ODM applications

*Surface resistance values should be confirmed according to the actual material specification and customer requirements before production.

PET Electronic Work Disk

PET can be used to manufacture transparent electronic work disks for applications where product visibility is useful.

Transparent trays allow operators to see components while they remain positioned inside individual cavities. This can be useful during production, inspection, inventory handling, and packaging.

When antistatic properties are required, an antistatic PET material can be selected according to the customer's required electrical specifications.

A PET electronic work disk can be customized in terms of:

Overall tray dimensions
Cavity dimensions
Cavity quantity
Cavity depth
Material thickness
Component spacing
Stackability
Production-line requirements

Conductive PS Electronic Work Disk

Conductive PS is another material option for electronic work disks.

It is typically black and can be selected when a lower surface resistance is required for the intended electronic application.

According to the product material specifications, conductive PS can provide a surface resistance of approximately 10⁴–10⁶ Ω.

Material selection should not be based only on appearance. Customers should provide their required electrical characteristics and application conditions before production.

Antistatic vs. Conductive Electronic Work Disk

Electronic components have different ESD handling requirements. Therefore, customers should distinguish between antistatic and conductive materials when selecting an electronic work disk.

Feature	Antistatic Electronic Work Disk	Conductive Electronic Work Disk
Primary Purpose	Helps control static accumulation	Provides lower electrical resistance
Typical Material	Antistatic PET	Conductive PS
Typical Appearance	Transparent	Black
Surface Resistance*	Approx. 10¹⁰–10¹² Ω	Approx. 10⁴–10⁶ Ω
Electronic Components	Suitable depending on ESD requirement	Suitable depending on ESD requirement
Custom Cavities	Available	Available
OEM / ODM	Available	Available

*Actual resistance specifications should be confirmed for each project.

The appropriate material should be selected according to the electronic component manufacturer's ESD requirements rather than simply choosing the lowest resistance value.

Custom Electronic Work Disk Specifications

One of the main advantages of vacuum forming is the ability to develop customized tray structures.

Custom Item	Available Options
Tray Dimensions	Customized
Material	PET, PS or specified material
Cavity Dimensions	According to component
Cavity Quantity	Customized
Cavity Depth	Customized
Thickness	According to application
Surface Resistance	According to material requirement
Appearance	Transparent, black or material-dependent
Stackable Design	Available according to requirements
Product Position	Customized
OEM	Available
ODM	Available

For a new project, providing the actual component or detailed dimensional drawings can help determine an appropriate cavity structure.

Why Use a Custom Electronic Work Disk?

A standard tray may not properly fit components with unique dimensions or shapes.

A custom electronic work disk can be designed around the actual component, allowing the cavity dimensions and tray layout to match the product more closely.

Better Component Positioning

Individual cavities can be designed according to the component's length, width, height, and geometry.

Organized Production Handling

A fixed cavity arrangement makes it easier to organize components during assembly, inspection, storage, and internal transportation.

Reduced Unnecessary Movement

A properly sized cavity can help reduce component movement inside the tray during normal handling.

Customized Quantity per Tray

The number of cavities can be designed according to production efficiency and component dimensions.

Production-Line Compatibility

Overall tray dimensions and component orientation can be developed according to the customer's manufacturing process.

Material Selection

PET, PS, antistatic, or conductive materials can be evaluated according to the intended application.

Electronic Work Disk vs. Ordinary Plastic Tray

Feature	Electronic Work Disk	Ordinary Plastic Tray
Electronic Component Application	Specifically configurable	General-purpose
Customized Cavities	Available	Depends on product
Antistatic Material	Available	Not necessarily
Conductive Material	Available	Not necessarily
Surface Resistance Requirement	Can be specified	Usually not the primary specification
Production-Line Design	Can be customized	Depends on tray
IC / D-RAM Applications	Available with appropriate specification	Must be evaluated
OEM / ODM	Available	Depends on manufacturer

For electronic manufacturing applications, the decision should be based on material properties, component dimensions, ESD requirements, and the actual handling process.

Vacuum Formed Electronic Work Disk

Vacuum forming is a practical manufacturing process for customized electronic work disks because it allows multiple component cavities to be formed into a single plastic tray.

During development, several factors should be considered:

Component dimensions
Component geometry
Cavity depth
Cavity spacing
Number of cavities
Tray dimensions
Material thickness
Product removal space
Stacking requirements
Production-line requirements
Transportation conditions

These details help determine the final mold and electronic work disk configuration.

How to Choose an Electronic Work Disk

Before ordering an electronic work disk, buyers should evaluate both the component and the manufacturing process.

Selection Factor	Information to Provide
Component	Product name and application
Dimensions	Length × width × height
Product Shape	Drawing, sample or photo
Quantity	Number of components per tray
Material	PET, PS or specified material
ESD Requirement	Antistatic or conductive
Surface Resistance	Required range
Tray Dimensions	Required length and width
Thickness	According to handling requirement
Stacking	Required or not required
Application	Production, inspection, storage or transport
Order Quantity	Estimated production quantity

Providing complete specifications can help reduce uncertainty during product development.

OEM and ODM Electronic Work Disk

WELL CHSIEN provides OEM and ODM electronic work disk manufacturing for customized electronic component handling applications.

Customers can provide an existing design or request a new tray configuration based on the actual component.

Useful information includes:

Physical product sample
2D drawing
3D drawing
Product dimensions
Product photos
Required tray dimensions
Required cavity quantity
PET or PS material requirement
ESD requirements
Surface resistance requirements
Stackability requirements
Estimated order quantity

The final design and material can then be evaluated according to the actual application.

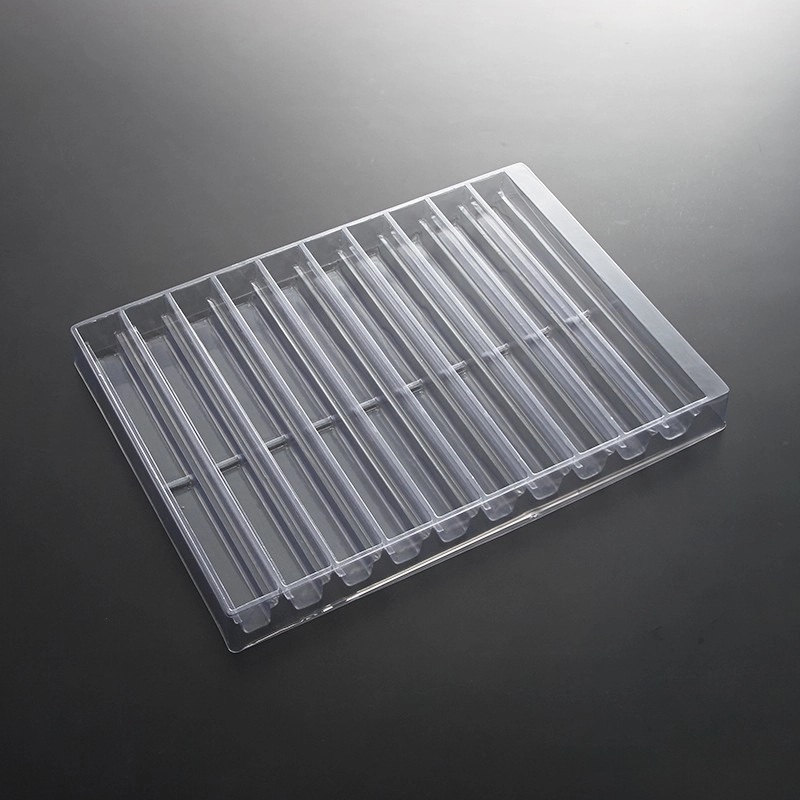

Actual Electronic Work Disk Product Application

WELL CHSIEN manufactures customized electronic work disks using vacuum forming technology.

Actual products can be developed according to customer component dimensions and production requirements. Instead of using a generic tray, cavity size, spacing, depth, tray dimensions, material, and static-control characteristics can be selected according to the intended application.

Electronic work disks can be developed for IC components, D-RAM, electronic parts, precision instruments, and other customized industrial components.

For new projects, customers are encouraged to provide actual samples or detailed drawings to assist with tray design evaluation.

Electronic Work Disk Manufacturer

WELL CHSIEN has more than 30 years of experience in vacuum forming and customized plastic product manufacturing.

Our manufacturing capabilities include electronic work disks, antistatic trays, conductive trays, vacuum formed packaging, plastic linings, covers, packaging boxes, and other customized vacuum formed products.

For electronic component applications, we can evaluate the required tray dimensions, cavity configuration, material, thickness, static-control characteristics, and other customized specifications.

OEM and ODM projects are welcome.

Electronic Work Disk Specifications at a Glance

Item	Specification
Product	Electronic Work Disk
Manufacturing Process	Vacuum Forming
Main Materials	PET / PS
Antistatic Material	Available
Conductive Material	Available
Custom Dimensions	Available
Custom Cavities	Available
Custom Cavity Quantity	Available
OEM	Available
ODM	Available
Main Applications	IC, D-RAM, electronic parts, precision components
Sample-Based Development	Available for evaluation
Drawing-Based Development	Available

How to Request an Electronic Work Disk Quotation

To receive an accurate evaluation, please provide as much information as possible about your electronic component and application.

Recommended information includes:

Component dimensions
Product drawing or physical sample
Required quantity per tray
Overall tray dimensions
Material requirements
Required surface resistance
Thickness requirements
Stacking requirements
Application environment
Estimated order quantity

If you are uncertain about the appropriate material or cavity structure, provide the component specifications and intended application for evaluation.

Frequently Asked Questions About Electronic Work Disks

What is an electronic work disk?

An electronic work disk is a customized plastic tray used to position, organize, handle, store, and transport electronic components during manufacturing and packaging processes.

What is an electronic work disk used for?

Electronic work disks can be used for IC components, D-RAM, semiconductor-related parts, electronic components, precision instruments, production-line handling, inspection, temporary storage, and internal transportation.

Can electronic work disks be customized?

Yes. Tray dimensions, cavity dimensions, cavity quantity, cavity depth, material, thickness, layout, and other specifications can be customized according to the component and production requirements.

What materials are available for electronic work disks?

PET and PS are available material options. Depending on the application, antistatic or conductive materials can also be selected.

Can an electronic work disk be antistatic?

Yes. Antistatic materials can be used when the electronic component requires static-control measures.

Can an electronic work disk be conductive?

Yes. Conductive materials such as conductive PS can be considered when the application requires lower electrical resistance.

What is the difference between an antistatic and conductive work disk?

The primary difference is the electrical behavior of the material. Antistatic materials help control static accumulation, while conductive materials provide lower electrical resistance. The appropriate material depends on the component's ESD requirements.

What is the surface resistance of antistatic PET?

According to the current material specifications, antistatic PET has a surface resistance of approximately 10¹⁰–10¹² Ω. Actual specifications should be confirmed before production.

What is the surface resistance of conductive PS?

According to the current material specifications, conductive PS has a surface resistance of approximately 10⁴–10⁶ Ω. Customers should specify their required resistance range when requesting a quotation.

Are electronic work disks suitable for IC components?

They can be designed for IC and other electronic component applications when the selected material, tray structure, and electrical properties meet the required handling specifications.

Can electronic work disks be used for D-RAM?

Yes. D-RAM is one of the electronic component applications for customized work disks, subject to the required ESD and handling specifications.

Can you manufacture an electronic work disk from a sample?

Yes. A physical product sample can be used to evaluate cavity dimensions and tray structure. Detailed drawings and dimensional information are also useful.

Can the number of cavities be customized?

Yes. Cavity quantity and layout can be designed according to component dimensions, tray size, and production requirements.

Can electronic work disks be stackable?

Stackable structures can be evaluated according to the product, tray geometry, and customer requirements.

Do you provide OEM electronic work disks?

Yes. OEM electronic work disks can be manufactured according to customer drawings and specifications.

Do you provide ODM electronic work disks?

Yes. ODM projects can be evaluated according to the component, application, material, ESD requirements, and required tray structure.

What information is needed for a quotation?

Please provide product dimensions, drawings or samples, cavity quantity, required tray dimensions, material, surface resistance requirements, stacking requirements, application, and estimated order quantity.

Related Electronic Work Disk Products

For applications requiring static-control materials, explore our Antistatic Working Disk solutions for electronic components.

For applications requiring lower-resistance materials, see our Conductive Working Disk products.

For additional customized component handling options, visit our Working Disk and TRAY Disk product pages.

To learn more about the manufacturing process, read our Vacuum Forming information and material selection guides.

Recommended Image ALT Text

Electronic work disk for electronic components
Custom electronic work disk
Electronic work disk manufacturer
PET electronic work disk
Antistatic electronic work disk
Conductive electronic work disk
Electronic component work disk
Vacuum formed electronic work disk
Electronic work disk for IC components
Electronic work disk for D-RAM components
Custom ESD electronic component tray
OEM electronic work disk

Product Image Caption

Actual Electronic Work Disk Product Example

This customized electronic work disk is designed for electronic component positioning, handling, storage, and transportation. The cavity dimensions, cavity quantity, tray size, material, thickness, and static-control properties can be customized according to specific electronic components and production requirements.

Electronic Work Disk – Actual Product Example

Electronic Work Disk – Actual Product Example

This electronic work disk is designed for the positioning, handling, storage, and transportation of electronic components and precision parts. The cavity size, tray dimensions, material, thickness, and layout can be customized according to specific product and production requirements.

WELL CHSIEN provides custom electronic work disks for IC components, D-RAM, electronic parts, and precision components. PET, PS, antistatic, and conductive material options are available for different applications. OEM and ODM projects are welcome.
